Dye Immersion Leak Test Series — Episode 2

Dye Immersion vs. Bubble Emission Test: Optimizing the Vial Leak Test

In the previous episode, we established the fundamental sequence of a dye ingress evaluation. However, a critical question arises when selecting container closure integrity testing (CCIT) methodologies: why utilize a liquid dye tracer instead of relying on a standard bubble emission test? This distinction is paramount when inspecting rigid pharmaceutical containers, where understanding the physical limitations of trapped gases is essential for an accurate vial leak test.

Equip your laboratory with reliable CCIT technology. Discover our pharmaceutical leak tester vacuum chambers engineered for precision dye ingress and bubble emission evaluations. Request a Quote.

The Mechanics of the Bubble Emission Test

The bubble emission test (ASTM D3078) is a highly effective, probabilistic leak detection method for larger flexible packaging. The principle relies on submerging a sealed package in a fluid within a vacuum chamber. As the external pressure drops, the pressure differential causes the relatively large volume of internal headspace gas to expand and force its way out through any existing capillary defect.

For a product like a large medical pouch, this constant internal pressure drives a continuous stream of bubbles into the surrounding test fluid. An operator conducting the inspection observes this steady ribbon of bubbles, providing immediate, visual confirmation of a gross leak or seal failure.

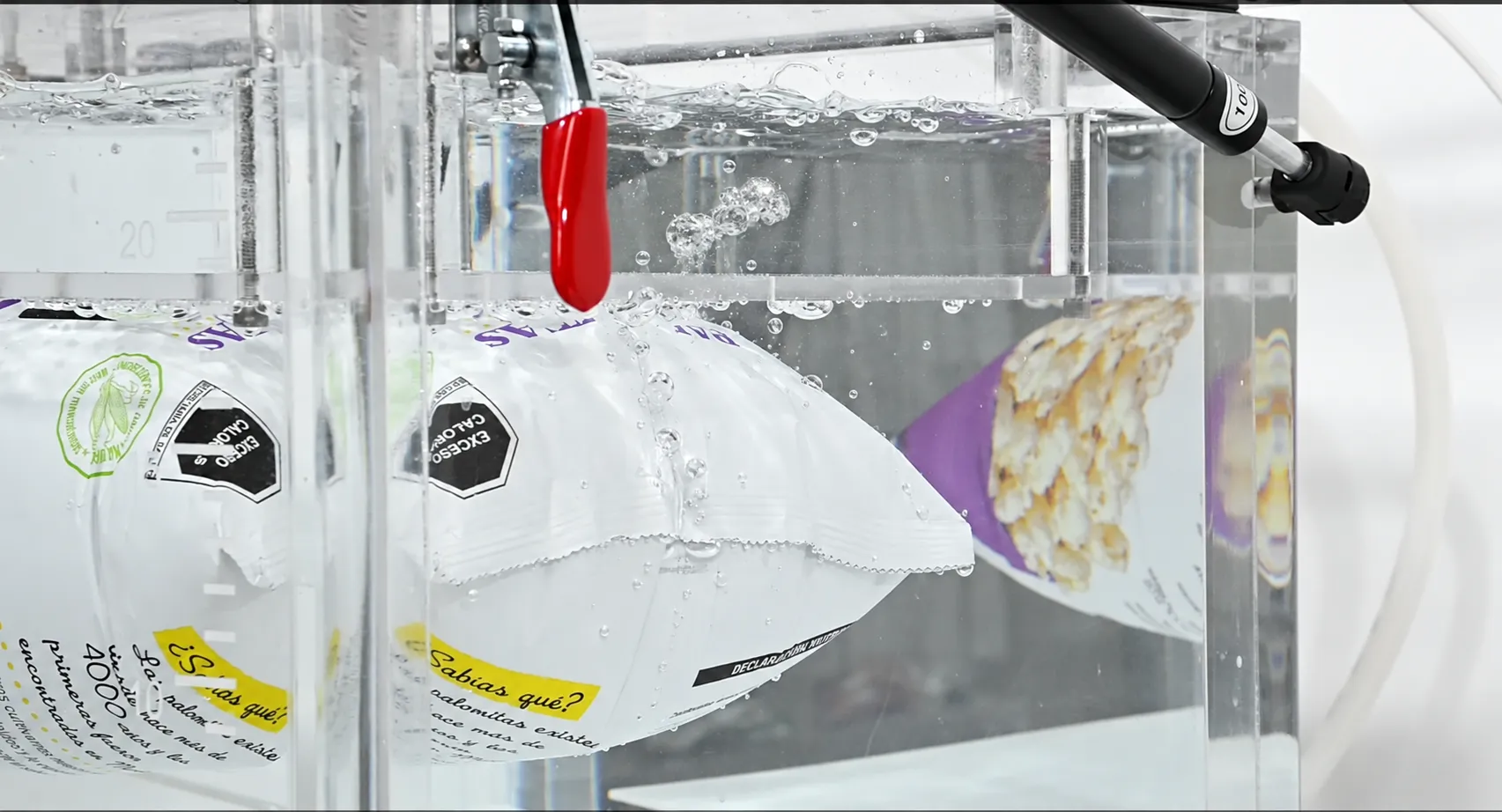

Bubble emission test in a vacuum chamber demonstrating a continuous air stream from a large flexible package — Continuous bubble stream observed during vacuum leak testing of larger packages with significant headspace.

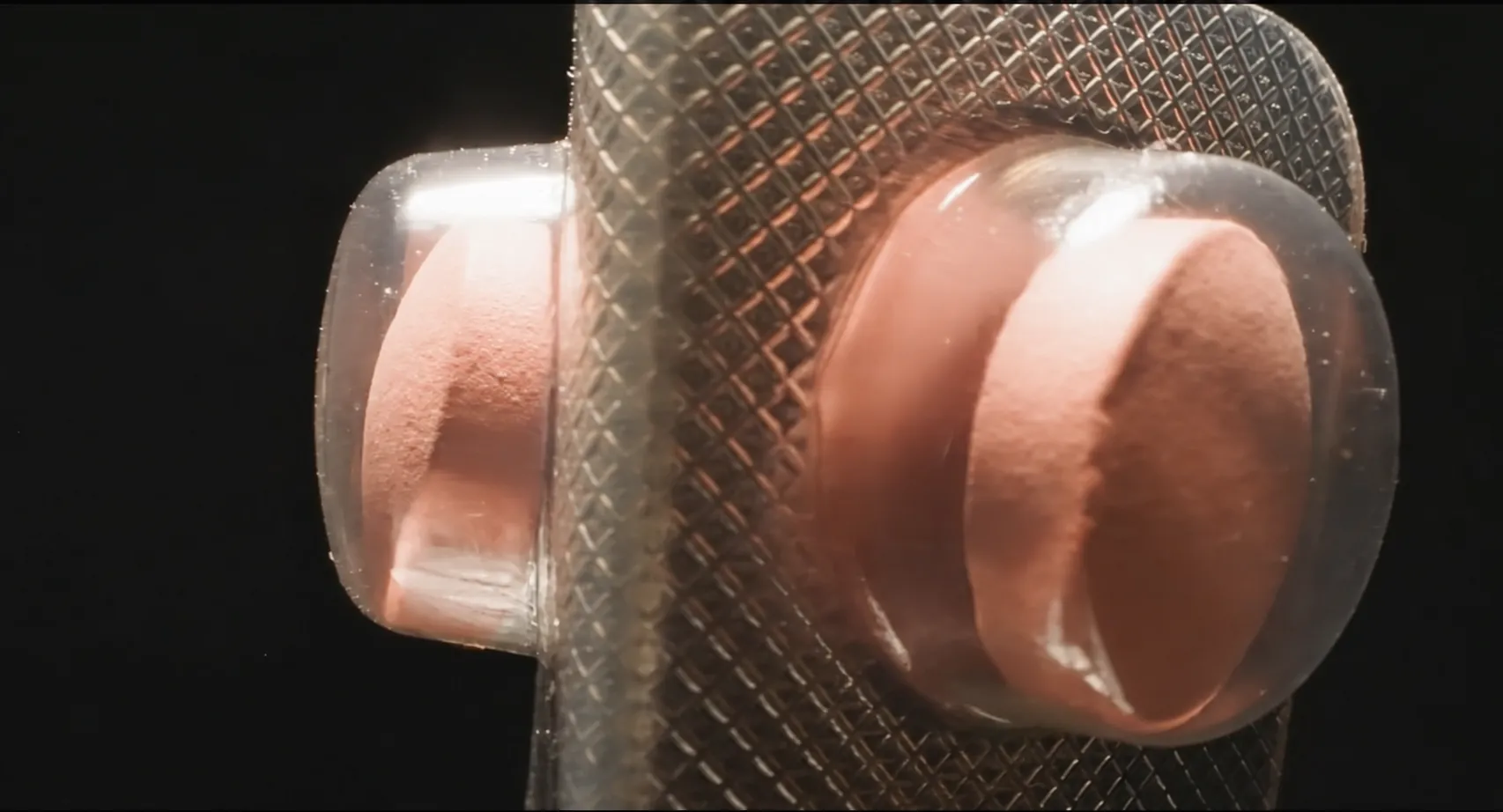

Small pharmaceutical vial inside a vacuum leak tester showing minimal headspace air volume — Small cavity volumes in pharmaceutical containers offer minimal gas escape, complicating visual bubble detection.

Physical Constraints in Small-Volume Formats

When the testing scope shifts to small-volume pharmaceutical packaging—such as vials, ampoules, syringes, or individual blister cavities—the physical dynamics change drastically. Two primary factors limit the efficacy of a standard visual bubble test for these formats.

1. Insufficient Expulsion Force: The driving force that pushes air through a defect is proportional to the internal gas volume and the available surface area responding to the pressure differential. A small, rigid vial possesses minimal surface area. Consequently, the gas escapes slowly, failing to generate a highly visible stream.

2. Minimal Headspace Volume: Even if the pressure differential is optimal, a small cavity contains a negligible amount of air. During a vacuum cycle, a leaking vial may expel only one or two microscopic bubbles before the internal and external pressures equalize. Spotting a single, transient micro-bubble in a fluid-filled chamber is practically impossible to execute reliably. The defect exists, but the visual signal is too fleeting.

Dye Ingress: Converting Transient Events to Permanent Data

A dye ingress test transforms a transient, microscopic gaseous event into a permanent, undeniable visual indicator. While the initial mechanism is identical—applying a vacuum to evacuate air from the leaking container—the critical diagnostic phase occurs subsequently.

During the atmospheric return (repressurization) phase of the cycle, the vacuum inside the testing chamber is released. The previously leaking cavity is now at a lower pressure relative to the surrounding test fluid (which contains a concentrated tracer, typically methylene blue). As the system reaches equilibrium, the higher-pressure external fluid is drawn through the leak path and into the container's headspace or product matrix. Unlike a bubble that vanishes instantly, the dye remains trapped inside the container for post-test analysis.

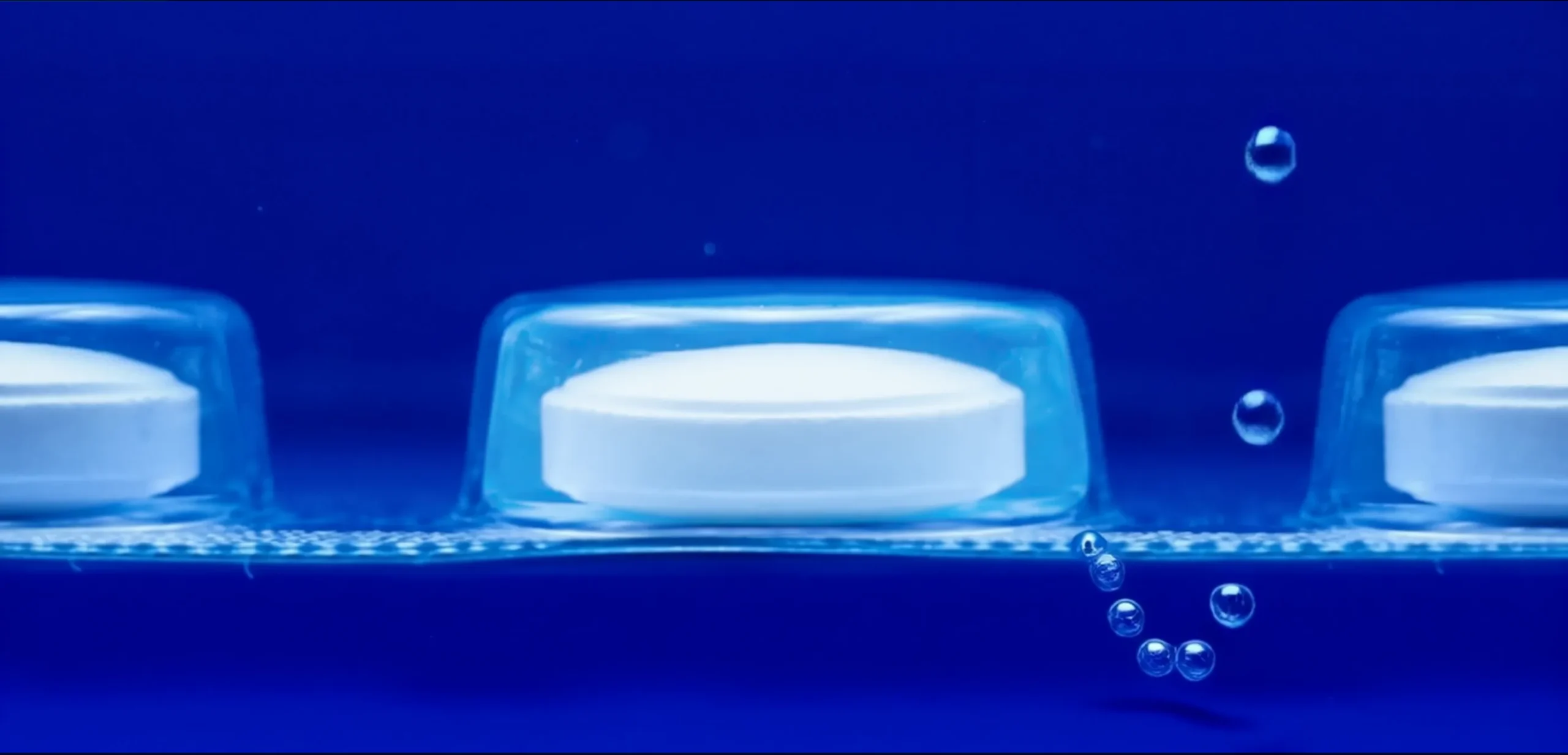

Microscopic bubbles escaping a pharmaceutical blister pocket during the vacuum phase of a leak test

1. Evacuation Phase: Headspace gas escapes as fast-dissolving micro-bubbles. This signal is highly unreliable for visual detection in small volumes.

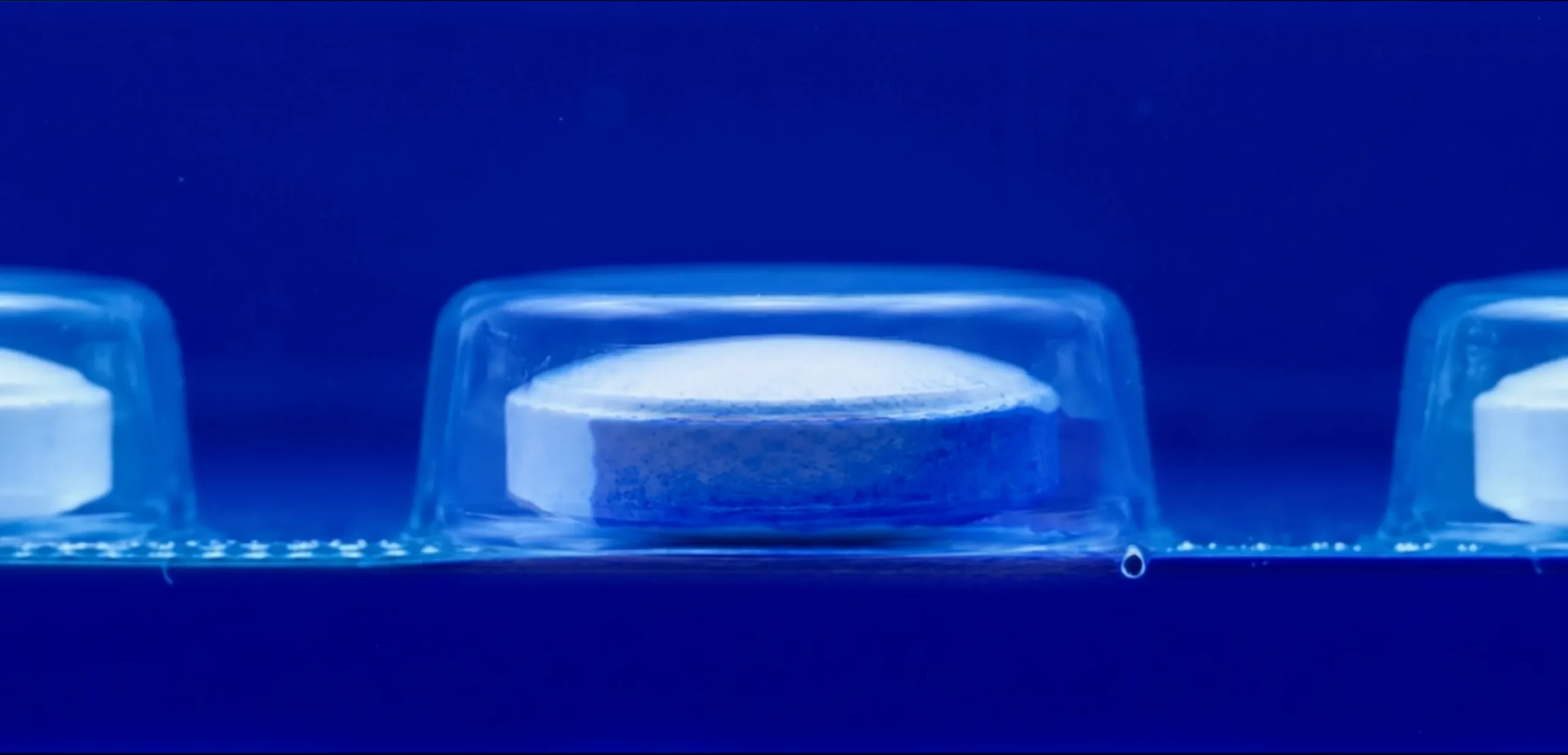

Atmospheric repressurization forcing methylene blue dye into a defective pharmaceutical package

2. Atmospheric Return: Chamber repressurization forces the methylene blue liquid directly through the microscopic orifice, penetrating the container.

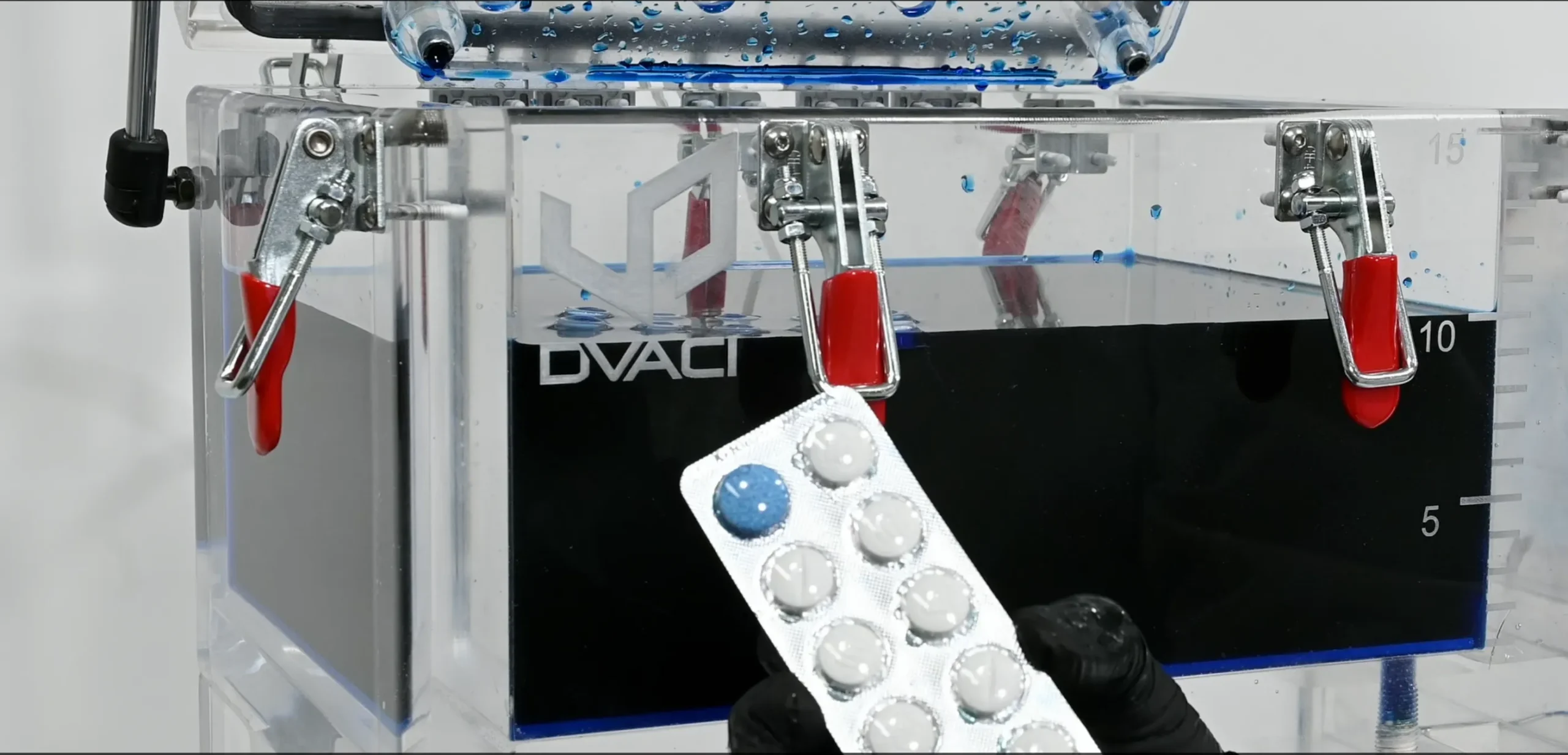

Visual inspection of a blister pack showing permanent blue dye staining a defective cavity

3. Final Visual Inspection: The defect leaves permanent visual proof. The operator analyzes the sample without the need to capture a real-time, split-second event.

This permanence is the primary reason a liquid tracer methodology is selected over a standard bubble test when validating the seal integrity of small-volume pharmaceutical packaging.
