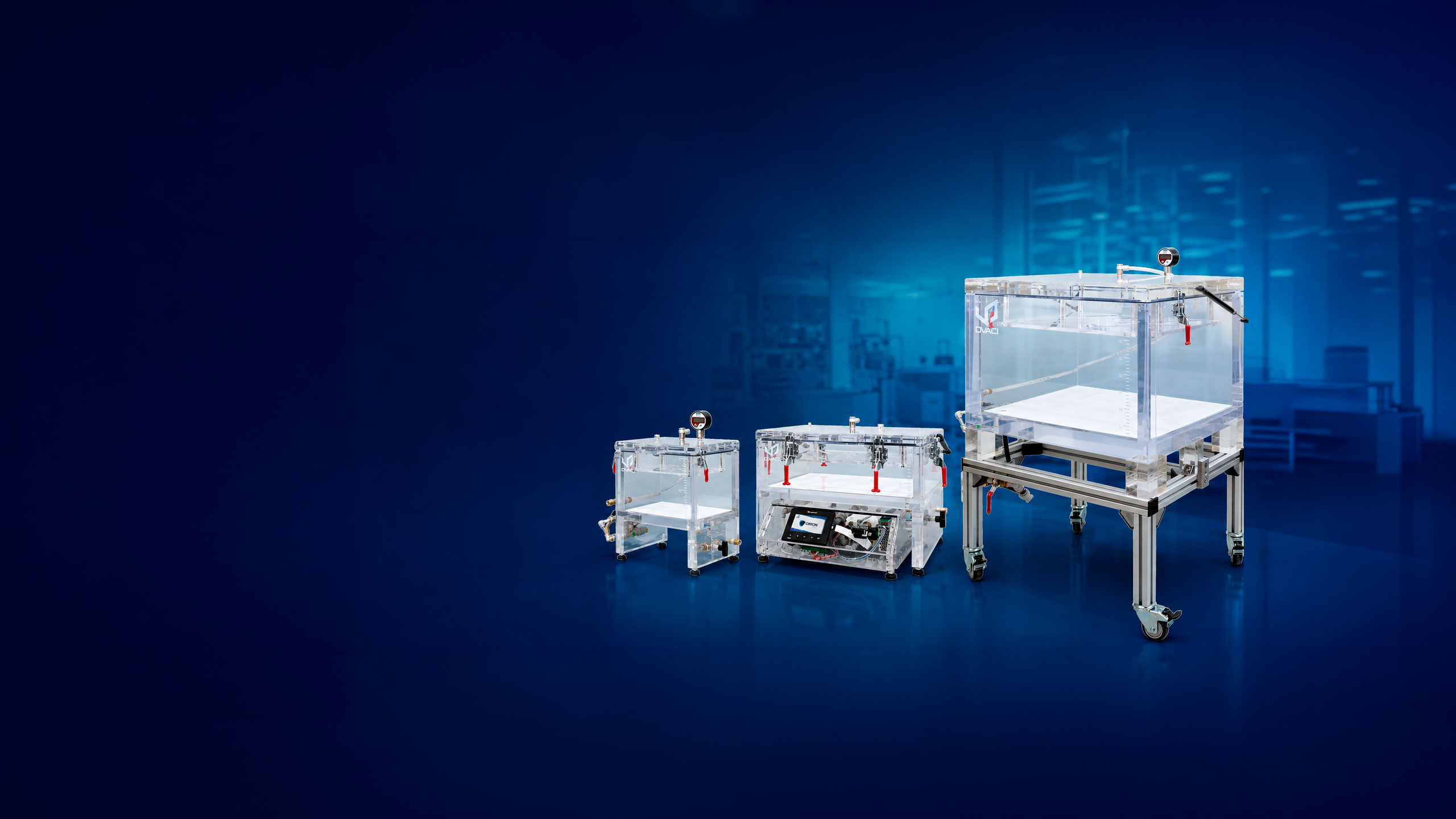

Product Lines | Vacuum Chambers CDV
5 Standard sizes divided into 2 categories: “Bench Top” and “Floor Stand”

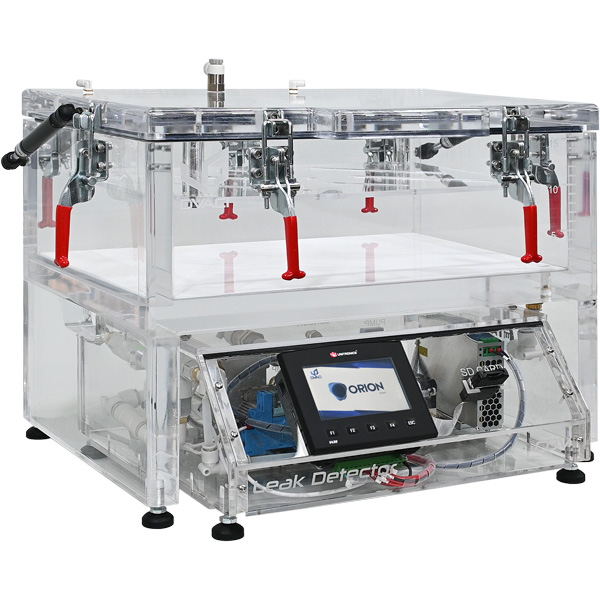

Bench Top version
CDV BT

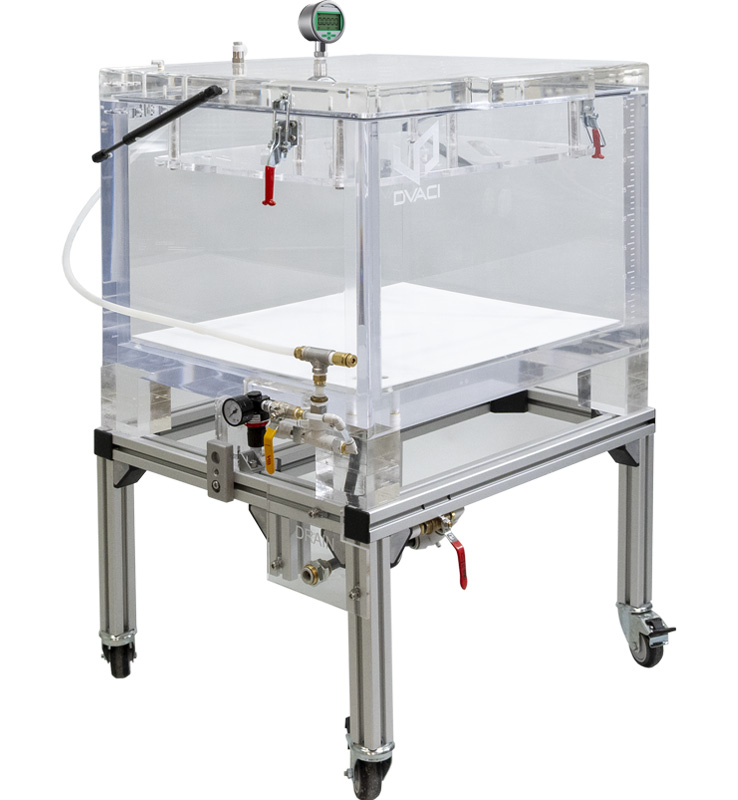

Floor Stand version
CDV FS
-28.9 inHg
at sea level
CDV 2
inside tank dimensions
11" x 8" x 8"
weight
42 lbs
maximum vacuum
28 x 20 x 20 cm
19 Kg
-980 mbar
-26.5 inHg
at sea level
CDV 3
inside tank dimensions
18" x 12" x 10"
weight
84 lbs
maximum vacuum
45 x 30 x 25 cm
38 Kg
-900 mbar
-22 inHg
at sea level
CDV 4
inside tank dimensions
20" x 14" x 14"
weight
92 lbs
maximum vacuum
50 x 35 x 35 cm
42 Kg
-750 mbar
-28 inHg
at sea level
CDV 5
inside tank dimensions
24" x 20" x 16"
weight
232 lbs
maximum vacuum
60 x 50 x 40 cm
105 Kg
-950 mbar
-22 inHg
at sea level
CDV 6
inside tank dimensions
31" x 24" x 20"
weight
387 lbs
maximum vacuum
80 x 60 x 50 cm
175 Kg
-750 mbar
We offer customized solutions adapted to any industry and specific needs
Internal Pressurization
The Internal Pressurization Optional Kit offers a unique method for detecting packaging leaks by injecting compressed air into the package, ideal for immersion tests that visually pinpoint leak locations. This kit, complete with a needle kit, seal pads, and a pressure regulator, is essential for industries requiring stringent packaging integrity, such as pharmaceuticals and food packaging, ensuring compliance with standards like ASTM F2096.
CDV PHARMA
A leak detection instrument designed for testing pharmaceuticals with the Methylene Blue Dye Test Method, a test mainly used for testing blister packaging.
CDV Pharma is an advanced instrument incorporating a vacuum chamber and operating system specially focused on the needs of the pharmaceutical industry.
CDV PRESSURE
The CDV Pressure merges a vacuum chamber and hyperbaric tank. This instrument is capable of performing altitude simulation, a necessary test for ensuring the quality of products when subjected to airfreight or high altitude transport.
Our CDV are compatible with the following standard test methods:
ASTM D3078
Standard Test Method for Determination of Leaks in Flexible Packaging by Bubble Emission
ASTM F2096
Standard Test Method for Detecting Gross Leaks in Packaging by Internal Pressurization (Bubble Test)
ASTM D4169
Standard Practice for Performance Testing of Shipping Containers and Systems
ASTM D6653
Standard Test Methods for Determining the Effects of High Altitude on Packaging Systems by Vacuum Method
ASTM D4991
Standard Test Method for Leakage Testing of Empty Rigid Containers by Vacuum Method
ASTM D5094
Standard Test Methods for Gross Leakage of Liquids from Containers with Threaded or Lug-Style Closures
Our products bear the “CE” mark:
We can help you. Contact us!
